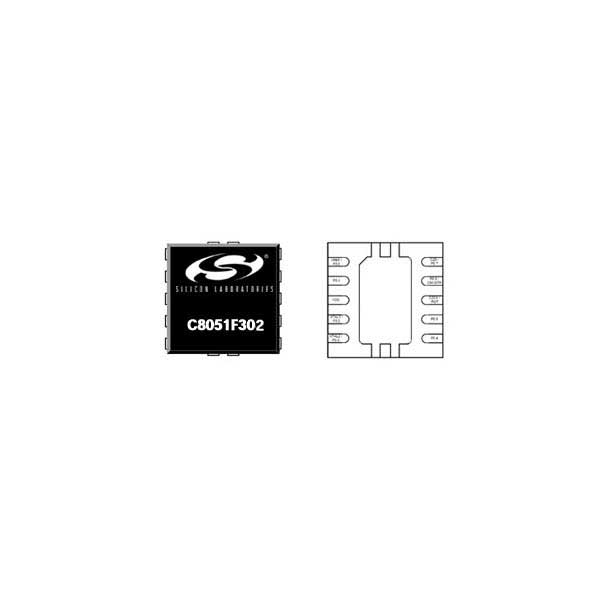

 C8051F302-GM

 25 MIPS, 8 kB Flash, 8-Bit ADC, 11-Pin Mixed Signal MCU


ÆǸŰ¡°Ý 5,610 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í C8051F302-GM
Á¦Á¶¿ø Silicon Labs [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA

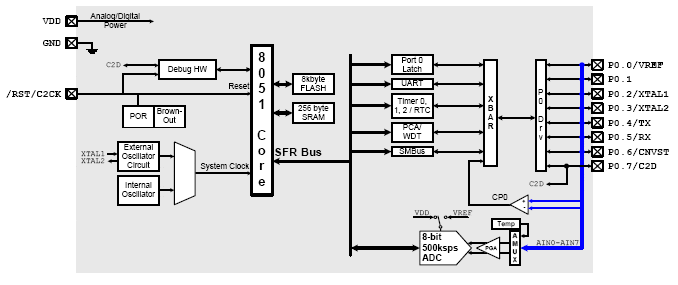

Analog Peripherals

8-Bit ADC
   - ¡¾1 LSB INL; no missing codes
   - Programmable throughput up to 500 ksps
   - Up to 8 external inputs; programmable as single-ended or differential
   - Programmable amplifier gain: 4, 2, 1, 0.5
   - VREF from external pin or VDD
   - Internal or external start of conversion sources
   - Data-dependent windowed interrupt generator
   - Built-in temperature sensor (¡¾3 ¡ÆC)

Comparator
   - Programmable hysteresis and response time
   - Configurable to generate interrupts or reset
   - Low current (0.4 ¥ìA)

POR/Brown-Out Detector

On-Chip Debug
   - On-chip debug circuitry facilitates full speed, non-intrusive in-system debug (no emulator required)
   - Provides breakpoints, single stepping, watchpoints
   - Inspect/modify memory, registers, and stack
   - Superior performance to emulation systems using ICE-chips, target pods, and sockets

Temperature Range: –40 to +85 ¡ÆC

High-Speed 8051 ¥ìC Core
   - Pipelined instruction architecture; executes 70% of instructions in 1 or 2 system clocks
   - Up to 25 MIPS throughput with 25 MHz clock
   - Expanded interrupt handler

Memory
   - 256 bytes data RAM
   - 8 kB Flash; in-system programmable in 512 byte sectors (512 bytes are reserved)

Digital Peripherals
   - 8 port I/O; all are 5 V tolerant
   - Enhanced Hardware SMBus¢â (I2C¢â compatible) and UART serial ports
   - Programmable 16-bit counter/timer array with three capture/compare modules, WDT
   - 3 general-purpose 16-bit counter/timers
   - Dedicated watchdog timer; bidirectional reset
   - Real-time clock mode using PCA or timer and external clock source

Clock Sources
   - Internal oscillator: 20 MHz nominal
   - External oscillator: Crystal, RC, C, or Clock (1 or 2 Pin Modes)
   - Can switch between clock sources on-the-fly

Supply Voltage: 2.7 to 3.6 V
   - Typical operating current: 5.8 mA at 25 MHz
                                         11 ¥ìA at 32 kHz
   - Typical stop mode current: <0.1 ¥ìA

Package
   - 11-pin QFN (lead-free package)
