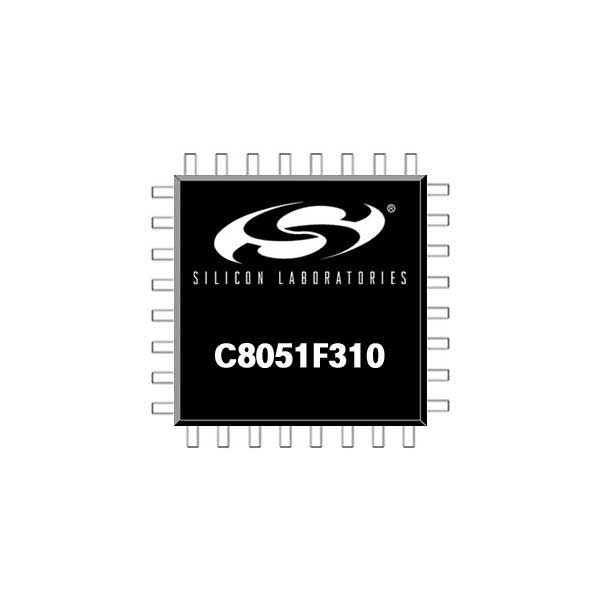

 C8051F310-GQ

 25 MIPS, 16 kB Flash, 10-Bit ADC, 32-Pin Mixed Signal MCU


ÆǸŰ¡°Ý 5,940 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í C8051F310-GQ
Á¦Á¶¿ø Silicon Labs [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA

Analog Peripherals

10-Bit ADC
   - ¡¾1 LSB INL; no missing codes
   - Programmable throughput up to 200 ksps
   - Up to 21 external inputs; programmable as single-ended or differential
   - Data-dependent windowed interrupt generator
   - Built-in temperature sensor (¡¾3 ¡ÆC)

Two Comparators
   - Programmable hysteresis and response time
   - Configurable to generate interrupts or reset
   - Low current (0.4 ¥ìA)

POR/Brown-out Detector

On-Chip Debug
   - On-chip debug circuitry facilitates full speed, non-intrusive in-system debug (no emulator required)
   - Provides breakpoints, single stepping
   - Inspect/modify memory and registers
   - Superior performance to emulation systems using ICE-chips, target pods, and sockets

Temperature Range: –40 to +85 ¡ÆC

High-Speed 8051 ¥ìC Core
   - Pipelined instruction architecture; executes 70% of instructions in 1 or 2 system clocks
   - Up to 25 MIPS throughput with 25 MHz system clock
   - Expanded interrupt handler

Memory
   - 1280 bytes data RAM
   - 16 kB Flash; in-system programmable in 512-byte sectors (512 bytes are reserved)

Digital Peripherals
   - 29 port I/O; all are 5 V tolerant
   - Hardware SMBus¢â (I2C¢â compatible), SPI¢â, and UART serial ports available concurrently
   - Programmable 16-bit counter/timer array with five capture/compare modules, WDT
   - 4 general-purpose 16-bit counter/timers
   - Realtime clock mode using timer or PCA

Clock Sources
   - Internal oscillator: 24.5 MHz, 2% accuracy supports UART operation
   - External oscillator: Crystal, RC, C, or Clock (1 or 2 pin modes)
   - Can switch between clock sources on-the-fly

Supply Voltage: 2.7 to 3.6 V
   - Typical Operating Current: 7 mA at 25 MHz
                                     15 ¥ìA at 32 kHz
   - Typical Stop Mode Current: <0.1 ¥ìA

Package
   - 32-pin LQFP (lead-free package)
