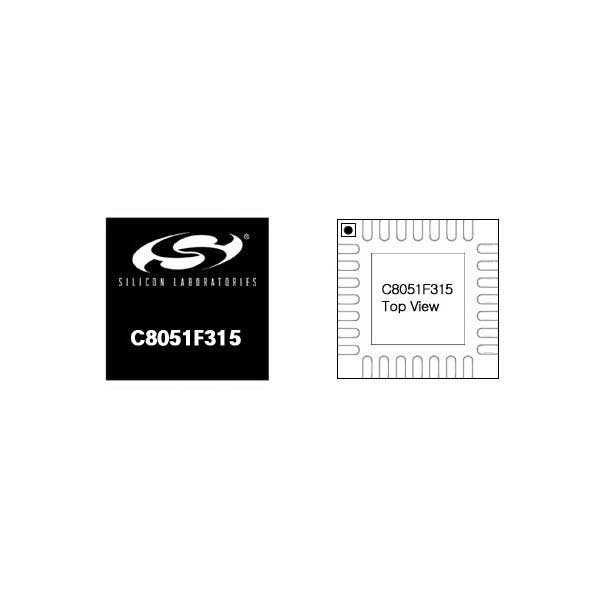

 C8051F315-GM

 25 MIPS, 8 kB Flash, 28-Pin Mixed Signal MCU


ÆǸŰ¡°Ý 7,370 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í C8051F315-GM
Á¦Á¶¿ø Silicon Labs [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA

Analog Peripherals

Two Comparators
  - Programmable hysteresis and response time
  - Configurable to generate interrupts or reset
  - Low current (0.4 ¥ìA)

POR/Brown-out Detector

On-Chip Debug
   - On-chip debug circuitry facilitates full speed, non-intrusive in-system debug (no emulator required)
   - Provides breakpoints, single stepping
   - Inspect/modify memory and registers
   - Superior performance to emulation systems using ICE-chips, target pods, and sockets

Temperature Range: –40 to +85 ¡ÆC

High-Speed 8051 ¥ìC Core
   - Pipelined instruction architecture; executes 70% of instructions in 1 or 2 system clocks
   - Up to 25 MIPS throughput with 25 MHz system clock
   - Expanded interrupt handler

Memory
   - 1280 bytes internal data RAM (256 + 1 k)
   - 8 kB Flash; in-system programmable in 512-byte sectors (512 bytes are reserved)

Digital Peripherals
   - 25 port I/O; all are 5 V tolerant
   - Hardware SMBus¢â (I2C¢â compatible), SPI¢â, and UART serial ports available concurrently
   - Programmable 16-bit counter/timer array with five capture/compare modules, WDT
   - 4 general-purpose 16-bit counter/timers
   - Realtime clock mode using timer or PCA

Clock Sources
   - Internal oscillator: 24.5 MHz, 2% accuracy supports UART operation
   - External oscillator: Crystal, RC, C, or Clock (1 or 2 pin modes)
   - Can switch between clock sources on-the-fly

Supply Voltage: 2.7 to 3.6 V
   - Typical Operating Current: 7 mA at 25 MHz
                                         15 ¥ìA at 32 kHz
   - Typical Stop Mode Current: <0.1 ¥ìA

Package
   - 28-pin QFN (lead-free package)


• <Àý´ë ÁÖÀÇ> ¸ðµç »óÇ°Àº Á¦Ç° ºÒ·®ÀÌ ÀÖÀ» ¼öµµ ÀÖ½À´Ï´Ù. µû¶ó¼­ ¾î¶°ÇÑ °æ¿ì¿¡µµ »óÇ°°¡°Ý ÀÌ»óÀÇ º¸»óÀº ¾ø½À´Ï´Ù.
• ¸ðµç »óÇ°¿¡ ³³¶« µî, »óÇ°¿¡ º¯ÇüÀ» ÁÙ ¼ö ÀÖ´Â ¸ðµç ÀÛ¾÷ ÈÄ¿¡´Â. ºÒ·®ÀÌ ¹ß»ýÇÏ¿©µµ º¸»óÀº ¾ø½À´Ï´Ù.
• »ó±â Á¦Ç°ÀÇ »óÇ° °ü·Ã µ¥ÀÌŸ´Â Âü°í »çÇ×À̹ǷΠÁ¦Ç°¿¡ ´ëÇÑ Å×½ºÆ® ¹× Á¤È®ÇÑ ÀÚ·á È®ÀÎ ÈÄ »ç¿ëÇϽñ⠹ٶø´Ï´Ù.
• °ü·Ã µ¥ÀÌŸ¿¡ ´ëÇÑ ³»¿ë¿¡ ´ëÇØ ¹ß»ýÇÏ´Â ¹®Á¦¿¡ ´ëÇؼ­´Â ¹ýÀûÀΠåÀÓÀ» ÁöÁö ¾Ê½À´Ï´Ù.
