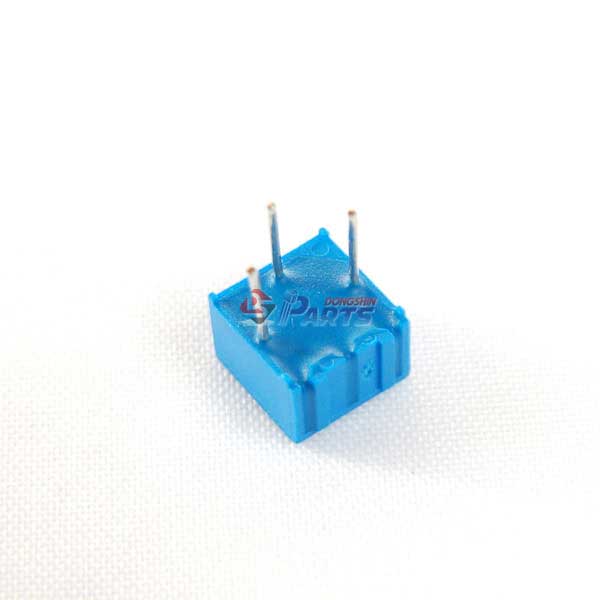

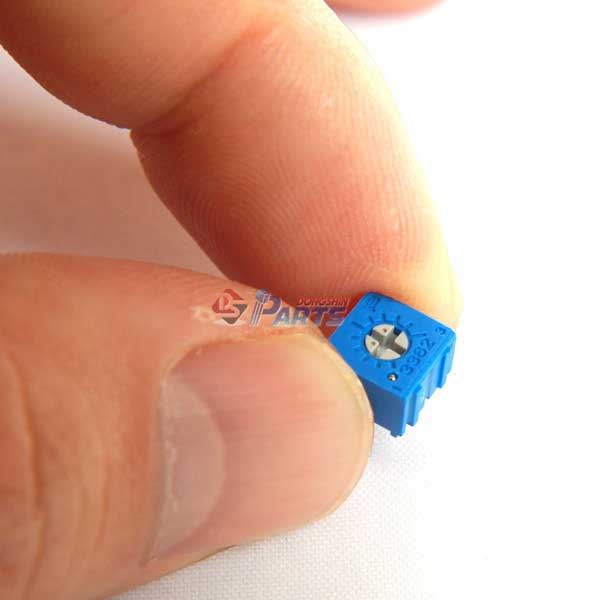

 0.5W ¹ø½º 3362P 500K§Ù °¡º¯ÀúÇ×

 1/4" Square Trimpot


ÆǸŰ¡°Ý 300 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í 3362P504
Á¦Á¶¿ø BOURNS [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA


Features

¡á Single-Turn / Cermet / Industrial / Sealed
¡á Miniature package
¡á Rotor designed for automatic machine adjust interface
¡á Withstands harsh environments and immersion cleaning processes
¡á Tape and reel packaging available
¡á RoHS compliant* version available
¡á For trimmer applications/processing guidelines


Electrical Characteristics

Standard Resistance Range ................................10 to 2 megohms(see standard resistance table)
Resistance Tolerance ........... ¡¾10 % std.(tighter tolerance available)
Absolute Minimum Resistance.................................... 1 % or 2 ohms(whichever is greater)
Contact Resistance Variation........................... 1 % or 3 ohms max.(whichever is greater)
Adjustability
     Voltage .................................. ¡¾0.05 %
     Resistance ............................ ¡¾0.15 %
Resolution ................................... Infi nite
Insulation Resistance ............... 500 vdc.
     1,000 megohms min.
Dielectric Strength
     Sea Level................................ 900 vac
     80,000 Feet ............................ 350 vac
Adjustment Angle ................. 240 ¡Æ nom.


Environmental Characteristics

Power Rating (300 volts max.)
     70 ¡ÆC ....................................0.50 watt
     125 ¡ÆC .......................................0 watt
Temperature Range ... -55 ¡ÆC to +125 ¡ÆC
Temperature Coeffi cient ... ¡¾100 ppm/¡ÆC
Seal Test ......................85 ¡ÆC Fluorinert¢Ó
Humidity .......MIL-STD-202 Method 103 96 hours(2 % ¥ÄTR; 10 Megohms IR)
Vibration ....... 30 G (1 % ¥ÄTR; 1 % ¥ÄVR)
Shock ......... 100 G (1 % ¥ÄTR; 1 % ¥ÄVR)
Load Life .. 1,000 hours 0.5 watt @ 70 ¡ÆC(3 % ¥ÄTR; 3 % or 3 ohms, whichever is greater, CRV)
Rotational Life .......................200 cycles(4 % ¥ÄTR; 3 % or 3 ohms,whichever is greater, CRV)


Physical Characteristics

Mechanical Angle ................. 270 ¡Æ nom.
Torque ............................. 3.0 oz-in. max.
Stop Strength ................. 7.0 oz -in. min.
Terminals .......................Solderable pins
Weight ....................................... 0.02 oz.
Marking ....................... Resistance code, terminal numbers, manufacturer¡¯s model number, style and date code
Wiper ............... 50 % (Actual TR) ¡¾10 %
Flammability ..........................U.L. 94V-0
Standard Packaging .....50 pcs. per tube
Adjustment Tool ..............................H-90
