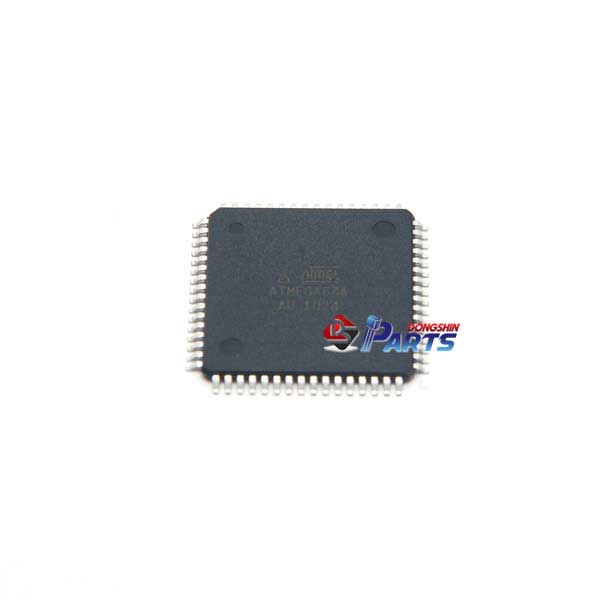

 ATmega64A-AU

 8-bit AVR Microcontroller with 64K Bytes In-System Programmable Flash


ÆǸŰ¡°Ý 3,000 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í ATmega64A-AU
Á¦Á¶¿ø
Àç°í
±¸¸Å¼ö·® EA  Ç°Àý

Features

• High-performance, Low-power AVR? 8-bit Microcontroller
• Advanced RISC Architecture
  – 130 Powerful Instructions – Most Single Clock Cycle Execution
  – 32 x 8 General Purpose Working Registers + Peripheral Control Registers
  – Fully Static Operation
  – Up to 16 MIPS Throughput at 16 MHz
  – On-chip 2-cycle Multiplier
• High Endurance Non-volatile Memory segments
  – 64K Bytes of In-System Reprogrammable Flash program memory
  – 2K Bytes EEPROM
  – 4K Bytes Internal SRAM
  – Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
  – Data retention: 20 years at 85¡ÆC/100 years at 25¡ÆC(1)
  – Optional Boot Code Section with Independent Lock Bits
      • In-System Programming by On-chip Boot Program
      • True Read-While-Write Operation
  – Up to 64K Bytes Optional External Memory Space
  – Programming Lock for Software Security
  – SPI Interface for In-System Programming
• JTAG (IEEE std. 1149.1 Compliant) Interface
  – Boundary-scan Capabilities According to the JTAG Standard
  – Extensive On-chip Debug Support
  – Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface
• Peripheral Features
  – Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
  – Two Expanded 16-bit Timer/Counters with Separate Prescaler, Compare Mode, and Capture Mode
  – Real Time Counter with Separate Oscillator
  – Two 8-bit PWM Channels
  – 6 PWM Channels with Programmable Resolution from 1 to 16 Bits
  – 8-channel, 10-bit ADC
      • 8 Single-ended Channels
      • 7 Differential Channels
      • 2 Differential Channels with Programmable Gain (1x, 10x, 200x)
  – Byte-oriented Two-wire Serial Interface
  – Dual Programmable Serial USARTs
  – Master/Slave SPI Serial Interface
  – Programmable Watchdog Timer with On-chip Oscillator
  – On-chip Analog Comparator
• Special Microcontroller Features
  – Power-on Reset and Programmable Brown-out Detection
  – Internal Calibrated RC Oscillator
  – External and Internal Interrupt Sources
  – Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby
  – Software Selectable Clock Frequency
  – ATmega103 Compatibility Mode Selected by a Fuse
  – Global Pull-up Disable

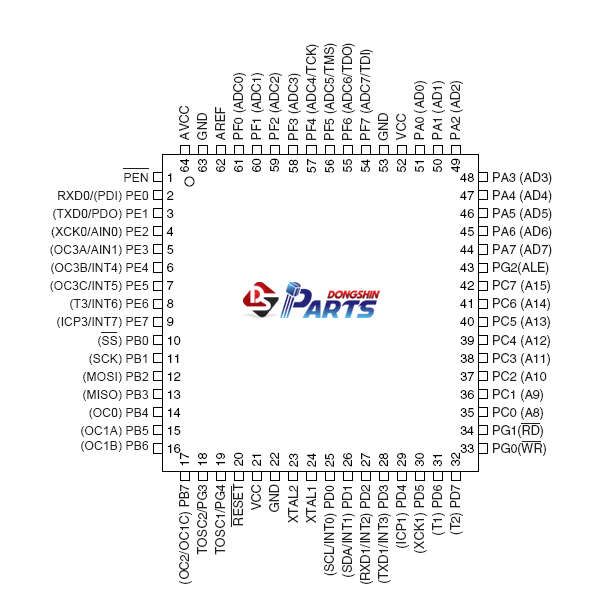

• I/O and Packages
  – 53 Programmable I/O Lines
  – 64-lead TQFP and 64-pad QFN/MLF
• Operating Voltages
  – 2.7 - 5.5V for ATmega64A
• Speed Grades
  – 0 - 16 MHz for ATmega64A


• <Àý´ë ÁÖÀÇ> ¸ðµç »óÇ°Àº Á¦Ç° ºÒ·®ÀÌ ÀÖÀ» ¼öµµ ÀÖ½À´Ï´Ù. µû¶ó¼­ ¾î¶°ÇÑ °æ¿ì¿¡µµ »óÇ°°¡°Ý ÀÌ»óÀÇ º¸»óÀº ¾ø½À´Ï´Ù.
• ¸ðµç »óÇ°¿¡ ³³¶« µî, »óÇ°¿¡ º¯ÇüÀ» ÁÙ ¼ö ÀÖ´Â ¸ðµç ÀÛ¾÷ ÈÄ¿¡´Â. ºÒ·®ÀÌ ¹ß»ýÇÏ¿©µµ º¸»óÀº ¾ø½À´Ï´Ù.
• »ó±â Á¦Ç°ÀÇ »óÇ° °ü·Ã µ¥ÀÌŸ´Â Âü°í »çÇ×À̹ǷΠÁ¦Ç°¿¡ ´ëÇÑ Å×½ºÆ® ¹× Á¤È®ÇÑ ÀÚ·á È®ÀÎ ÈÄ »ç¿ëÇϽñ⠹ٶø´Ï´Ù.
• °ü·Ã µ¥ÀÌŸ¿¡ ´ëÇÑ ³»¿ë¿¡ ´ëÇØ ¹ß»ýÇÏ´Â ¹®Á¦¿¡ ´ëÇؼ­´Â ¹ýÀûÀΠåÀÓÀ» ÁöÁö ¾Ê½À´Ï´Ù.
