 2 Modular Digits With Serial Interface K8063


ÆǸŰ¡°Ý 53,000 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í K8063
Á¦Á¶¿ø Velleman [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA


Features

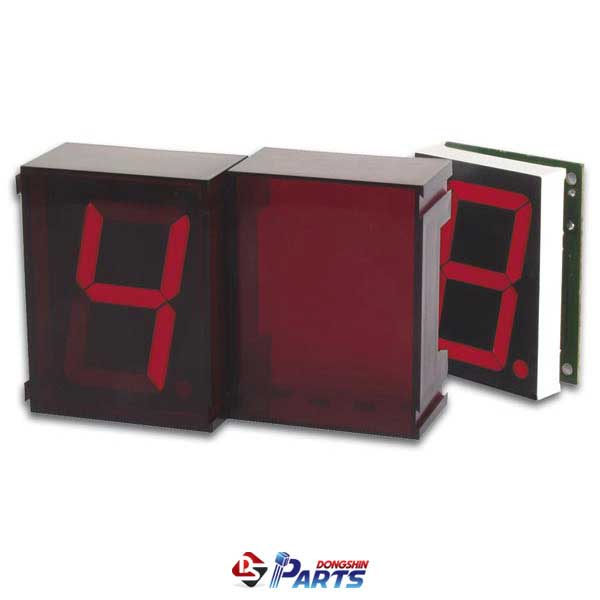

 • bright, red, jumbo-sized 7-segment displays (57mm).
 • complete with snap-in enclosure

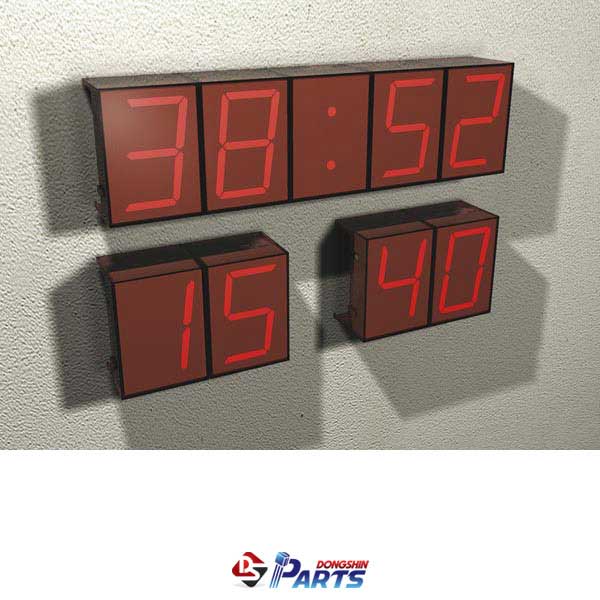

 • multiple units can be linked in an easy way to create larger readouts for e.g. score-keeping, timing, counting, ...
 • easy platform-independent control via RS232 three-wire interface
 • up to 255 units can be separately addressed
 • tested with distances of up to 50m between PC and displays
 • for USB connection use our optional PCUSB6


Specifications

 • power supply: 9 to 12Vdc / 120mA per display
 • RS232 interface: 2400baud / 8 data bits / no parity / 1 stop bit
 • dimensions: 74 x 58.5 x 32mm / 2.9 x 2.3 x 1.3


Download
Source and demo software
