 C8051F012-GQ

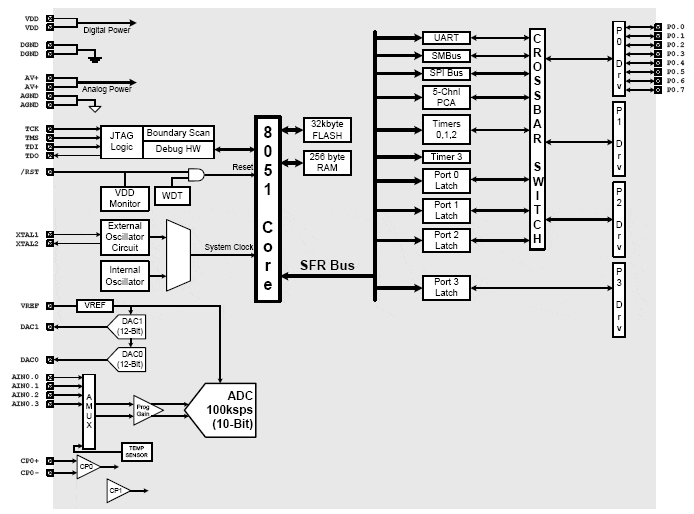

 20 MIPS, 32 kB Flash, 10-Bit ADC, 32-Pin Mixed-Signal MCU


ÆǸŰ¡°Ý 19,690 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í C8051F012-GQ
Á¦Á¶¿ø Silicon Labs [ºê·£µå ¹Ù·Î°¡±â]
Àç°í
±¸¸Å¼ö·® EA  Ç°Àý

Analog Peripherals

10-Bit ADC
  - ¡¾1 LSB INL; no missing codes
  - Programmable throughput up to 100 ksps
  - 4 external inputs; programmable as single-ended or differential
  - Programmable amplifier gain: 16, 8, 4, 2, 1, 0.5
  - Data-dependent windowed interrupt generator
  - Built-in temperature sensor (¡¾3 ¡ÆC)

Two 12-Bit DACs
  - Voltage output
  - 10 ¥ìsec settling time

Comparator
  - 16 programmable hysteresis values
  - Configurable to generate interrupts or reset

Internal Voltage Reference

VDD Monitor/Brown-out Detector

On-Chip JTAG Debug
  - On-chip emulation circuitry facilitates full-speed, non-intrusive, in-circuit emulation
  - Supports breakpoints, single stepping, watchpoints, inspect/modify memory, and registers
  - Superior performance to emulation systems using ICE-chips, target pods, and sockets
  - Fully compliant with IEEE 1149.1 specification

Temperature Range: –40 to +85 ¡ÆC

High-Speed 8051 ¥ìC Core
  - Pipelined instruction architecture; executes 70% of Instructions in 1 or 2 system clocks
  - Up to 20 MIPS throughput with 20 MHz clock
  - Expanded interrupt handler; up to 21 interrupt sources

Memory
  - 256 bytes data RAM
  - 32 kB Flash; in-system programmable in 512-byte sectors (512 bytes are reserved)

Digital Peripherals
  - 8 port I/O; all are 5 V tolerant
  - Hardware SMBus¢â (I2C¢â compatible), SPI¢â, and UART serial ports available concurrently
  - Programmable 16-bit counter/timer array with five capture/compare modules
  - 4 general-purpose 16-bit counter/timers
  - Dedicated watchdog timer; bidirectional reset

Clock Sources
  - Internal programmable oscillator: 2–16 MHz
  - External oscillator: Crystal, RC, C, or Clock
  - Can switch between clock sources on-the-fly

Supply Voltage: 2.7 to 3.6 V
  - Typical operating current: 10 mA at 20 MHz
  - Multiple power saving sleep and shutdown modes

Package
  - 32-pin LQFP (lead-free package)
