 C8051F064-GQ

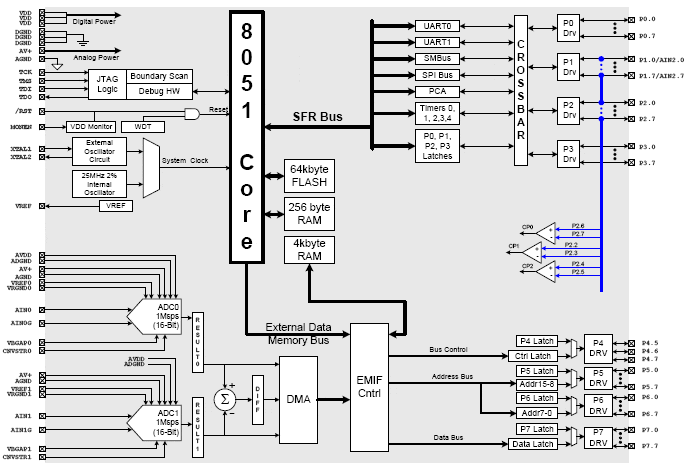

 25 MIPS, 64 kB Flash, 16-Bit ADC, 100-Pin Mixed-Signal MCU


ÆǸŰ¡°Ý 17,270 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í C8051F064-GQ
Á¦Á¶¿ø Silicon Labs [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA

Analog Peripherals

Two 16-Bit ADCs
  - ¡¾0.75 LSB INL; no missing codes
  - Programmable throughput up to 1 Msps (each ADC)
  - 1 external input each; programmable as two single-ended or one differential ADC
  - DMA to XRAM or external memory interface
  - Data-dependent windowed interrupt generator

Three Comparators
  - 16 programmable hysteresis values
  - Configurable to generate interrupts or reset

Internal Voltage Reference

Precision VDD Monitor/Brown-out Detector

On-Chip JTAG Debug & Boundary Scan
  - On-chip debug circuitry facilitates full speed, non-intrusive in-system debug (no emulator required)
  - Provides breakpoints, single stepping, watchpoints, stack monitor
  - Inspect/modify memory and registers
  - Superior performance to emulation systems using ICE-chips, target pods, and sockets
  - IEEE1149.1 compliant boundary scan

Temperature Range: –40 to +85 ¡ÆC

High-Speed 8051 ¥ìC Core
  - Pipelined instruction architecture; executes 70% of instructions in 1 or 2 system clocks
  - Up to 25 MIPS throughput with 25 MHz system clock
  - Expanded interrupt handler

Memory
  - 4352 bytes data RAM
  - 64 kB Flash; in-system programmable in 1024-byte sectors (1024 bytes are reserved)
  - External parallel data memory interface

Digital Peripherals
  - 59 port I/O; all are 5 V tolerant
  - Hardware SMBus¢â (I2C¢â compatible), SPI¢â, and two UART serial ports available concurrently
  - Programmable 16-bit counter/timer array with six capture/compare modules
  - 5 general-purpose 16-bit counter/timers
  - Dedicated watchdog timer; bidirectional reset
  - Real-time clock mode using timers or PCA

Clock Sources
  - Internal oscillator: 24.5 MHz, 2% accuracy supports UART operation
  - External oscillator: Crystal, RC, C, or Clock
  - Can switch between clock sources on-the-fly

Supply Voltage: 2.7 to 3.6 V
  - Typical operating current: 18 mA at 25 MHz
  - Multiple power saving sleep and shutdown modes

Package
  - 100-pin TQFP (lead-free package)
