 ISP Flash MCU C8051F531A-IT

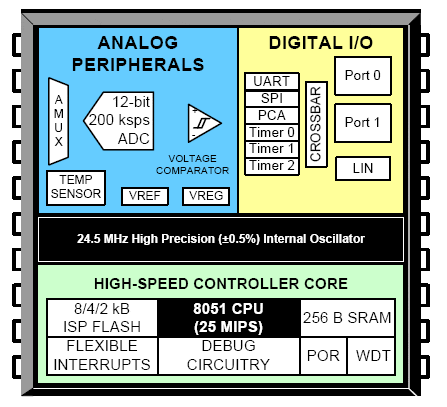

 25 MIPS, 8 kB Flash, 12-Bit ADC, 20-Pin Automotive MCU


ÆǸŰ¡°Ý 7,260 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í C8051F531A-IT
Á¦Á¶¿ø Silicon Labs [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA

Analog Peripherals

12-Bit ADC, 5 V input signal; up to 16 external inputs
     - ¡¾1 LSB INL; guaranteed monotonic
     - Programmable throughput up to 200 ksps
     - Data-dependent windowed interrupt generator
     - Programmable gain maximizes input signal span

Built-in Temperature Sensor (¡¾3 ¡ÆC)
Programmable Comparator
Precision Internal Voltage Reference
VDD Monitor/Brown-out Detector
On-Chip Debug
     - On-chip debug circuitry facilitates full speed, non-intrusive in-system debug (no emulator required)
     - Provides breakpoints, single stepping, watch-points
     - Inspect/modify memory, registers, and stack
     - Superior performance to emulation systems using ICE-chips, target pods, and sockets

Temperature Range: –40 to +125 ¡ÆC

Operating Voltage: 1.8 to 5.25 V
     - Multiple power saving sleep and shutdown modes

Development Kit: C8051F530ADK

High-Speed 8051 ¥ìC Core
     - Pipelined instruction architecture; executes 70% of instructions in one or two system clocks
     - Up to 25 MIPS throughput

Memory
     - 8 kB Flash; in-system programmable; flexible security features
     - 256 bytes data RAM

Digital Peripherals
     - Up to 16 digital I/O; all are 5 V push-pull
     - SPI¢â and UART serial ports available concurrently
     - Programmable 16-bit counter array with three capture/compare modules
     - Three general-purpose 16-bit counter/timers

Clock Sources
     - Internal programmable 0.5% oscillator: Up to 25 MHz
     - External oscillator: Crystal, RC, C, or CMOS Clock

Ordering Part Numbers
     - C8051F531A-IT, 20-Pin TSSOP (RoHS-compliant), 6 x 6 mm2
     - C8051F531A-IM, 20-Pin QFN (RoHS-compliant), 4 x 4 mm2
